Suitable as a non-asbestos gasket for piping flanges and equipment in various industries.
Piping flanges for various industries such as petroleum refining / chemicals and ships.

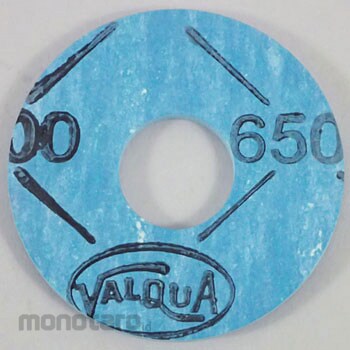

VALQUA Middle packing for flange (non-ass)
#Grup produk P114984496
Spesifikasi
| Color | Blue |
|---|---|
| Compression Ratio (%) | 10.0 (at 34.3MPa) |
| Density (g/cm³) | 1.81 |
| Flexibility | (Vertical direction) 9 times the thickness |
| Material | Non-asbestos |
| Nominal Pressure | 10K |
| Operating Temperature Range (°C) | -50~100 |
| Pressure (MPa [kgf/cm²]) | Usable water system fluid: 3.0 [30] Oil system fluid: 3.0 [30] Gas system fluid: 1.0 [10] |
| Return Ratio (%) | 55.0 (at 34.3MPa) |
| Suitable fluid | Air, water, seawater, hot water, water vapor, general oils, weak acid, weak alkali, alcohol, inert gas, etc. |
| Thickness (mm) | 3 |
| Type | Middle packing for flange |
