A non-asbestos joint sheet that uses the minimum amount of organic fibers and contains a special rubber binder with excellent heat resistance in addition to artificial inorganic fibers and carbon fibers with excellent heat resistance. It can be applied to a wide range of applications.
Petroleum refining / chemicals, steam lines, piping flanges, valve bonnets, various equipment joints

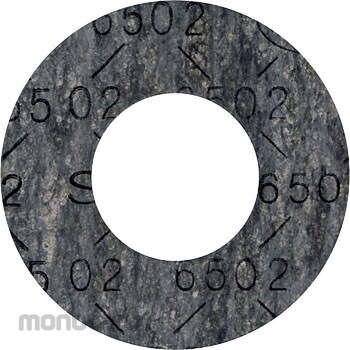

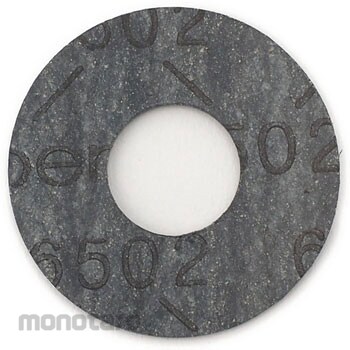

VALQUA Middle packing for flange (for steam)
#Grup produk P114984353
Spesifikasi
| Compression Ratio (%) | 9 (at 34.3MPa) |
|---|---|
| Density (kg/m³) | 1761 |
| Feature | Heat-resistant |
| Flexibility | (Vertical direction) 11 |
| Material | Non-asbestos |
| Operating Temperature Range (°C) | -50~214 |
| Return Ratio (%) | 67 (at 34.3MPa) |
| Suitable fluid | Water-based fluid, oil-based fluid, gas-based fluid (air, nitrogen gas, inert gas, etc.) |
| Tensile Strength (MPa) | (Landscape) 13.1 |
| Thickness (mm) | 1.5 |
| Type | Middle packing for flange |
| Withstand Pressure (MPa) | (Usage limit) Water / 3.0, Oil / 3.0, Gas / 1.0 |
