It is used for connecting to female threads of steel pipe sockets, valves, equipment, etc. that do not need to be removed.
* The standard of the screw is JIS B 0203 tapered male screw.
* The insert material of the threaded part is JIS H 3250 free-cutting brass.
* Be sure to use sealing tape when connecting screws.

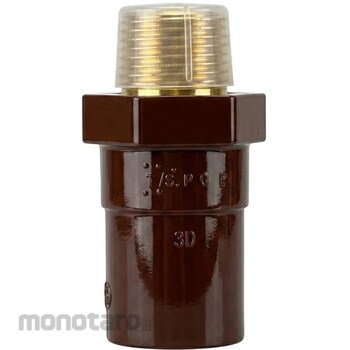

SEKISUI HT Insert Valve socket
#Grup produk P114978370
Spesifikasi
| Dimension D (mm) | 41 |
|---|---|
| Dimension D1 (mm) | 33.249 |
| Dimension D2 (mm) | 45 |
| Dimension L (mm) | 99 |
| Dimension L1 (mm) | 16.79 |
| Dimensions a (mm) | 10.39 |
| Dimensions t (mm) | 4 |
| Nominal Diameter (mm) | 25x1mm |
| Nominal Diameter A | 25A |
| Nominal Size of Screw | R1 |
| Number of Threads per inch | 11 |
| Shape | Valve socket |
