Uses an adhesive with high thermal conductivity and has excellent heat dissipation. Non-halogen flame retardant UL94VTM-0 (FILE No.E125972) Halogen flame retardants and antimony are not used. Acrylic adhesive is used and no siloxane gas is generated. It has electrical insulation. Since it contains a support, it can be punched into a fine shape. VOC countermeasure products (non-toluene, non-xylene) 13 substances (toluene, xylene, etc.) specified by the Ministry of Health, Labor and Welfare are not intentionally used.
For fixing heat sinks to various semiconductors and electronic components. For fixing heat dissipation parts. For heat dissipation of LED.

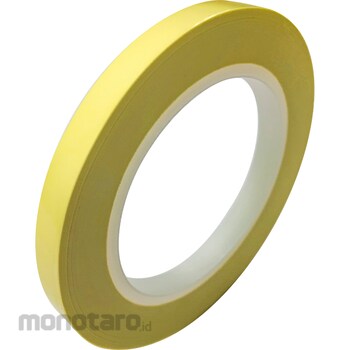

TERAOKA SEISAKUSHO Flame Retardant Thermally Conductive Polyester Film Double Sided Tape
#Grup produk P114883072
Spesifikasi
| Adhesive | Thermally conductive acrylic adhesive |
|---|---|
| Adhesive Force | 13.60[1387]N/25mm[gf] |
| Base Material | PET film |
| Breakdown Voltage (kV) | 5.3 |
| Color | yellow |
| Length (m) | 20 |
| Main Works | Parts |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Standard | UL94VTM-0 |
| Tape Length (m) | 20 |
| Tape Thickness (mm) | 0.125 |
| Temperature Difference (°C) | ΔT 9.5 |
| Thermal Conductivity (W/mk) | 0.8 |
| Thickness (mm) | 0.125 |
| suitable usage | Low VOC |
