A tricolloid pump is an internal gear pump that rotates with an external gear (outer rotor) meshing with an internal gear (inner rotor), and the tooth profile is formed by a trochoidal curve. The trochoid pump consists of a circular case, an outer disc-shaped outer rotor with teeth on the inside, and a pentagonal outer rotor and a thread-like inner rotor with four teeth that mesh with it. The drive shaft is the center of the inner rotor. The center of the inner rotor and the center of the outer rotor are eccentric. Normally, when the inner rotor rotates, the outer rotor is driven in the same direction. About rotation When the distance between the two is short, the inner crest and the outer trough mesh, but when the distance is far, the inner tooth is one less, so the three spaces formed between the outer and the outer expand and contract. It works as a pump and forcibly sucks in and discharges the liquid.
* This product is designed and its performance is displayed based on ISO VG46 40 °C.

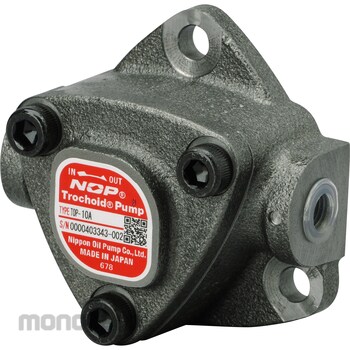

Nippon Oil Pump Trochoid
#Grup produk P114879158
Sebelum PPN:
Rp1.199.900 - Rp1.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Direction of Rotation | Rotate counterclockwise when viewed from the drive shaft |
|---|---|
| Maximum Pressure (MPa) | 0.5 |
| Operating Temperature Range (°C) | -5~80 |
| Operation Environment | It cannot be used in a dusty place, outside the ambient temperature range, or installed so that the pump is above the motor when viewed from the horizontal position. |
| Shape of Shank | Flat shaft (double chamfering) |
| Suitable fluid | Oil |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationIndoor specification
