Suitable for measuring the level of wastewater. This type is reinforced with lightning protection (±10kV) to withstand induced currents caused by lightning and other sources. It overcomes the various problems of conventional water level meters, such as malfunctions. This water level sensor meets the advanced water level management requirements of next-generation water treatment.
Water level management and measurement in FRP septic tanks and small-scale combined septic tanks, water level management and measurement in sewage treatment facilities, and general water level measurement
* Electrical work performed by anyone other than qualified personnel is prohibited by law. * Please be sure to read the instruction manual before installation and use the product correctly.

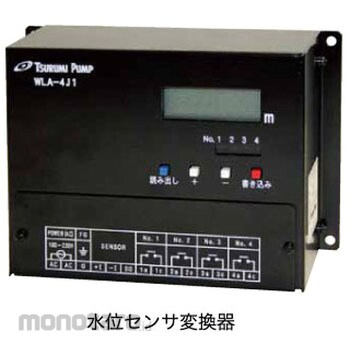

TSURUMI MANUFACTURING Immersion type water level sensor converter WLA type
#Grup produk P114873491
Spesifikasi
| Input | Water level sensor supply power supply: DC26V |
|---|---|
| Input Signal | DC4~20mA |
| Mass (kg) | Approximately 0.9 (converter body) |
| Maximum Power Consumption (W) | About 10 |
| Measuring Accuracy | Non-linear error: ± 0.5% FS ± 1 digit, temperature effect: ± 0.05% FS / ° C, relay contact output: ± 1.0% FS |
| Measuring Range (m) | 0~200 |
| Mounting Type | Indoor installation (wall mount type) |
| Number of Contacts | Relay output 4 points, a contact |
| Operating Humidity Range (%RH) | 80 or less (no condensation) |
| Operating Temperature Range (°C) | -5~50 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 170x67x120 |
| Power Supply Voltage (V) | AC85~242(50/60Hz) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification[Lightning surge resistance] Power supply: ± 10kV, signal input: ± 10kV, ± 5kA
