The pipeline design allows for free installation in either a vertical or horizontal direction. The compact, lightweight, and BPO (back pull out) system allows for easy maintenance and inspection without changing the piping. The wetted parts are rust-proofed, and the TPBGZ model in particular uses gunmetal. Air bleed plugs are installed throughout the main body, allowing for air bleeding in any installation position. The motor is equipped with a protection device, so there is no need to worry about burnout, and the use of oil-free bearings further increases durability.
For circulating hot and cold water. For various machine sets.
* Do not use the product outside the specified product specifications. It may cause electric leakage, electric shock, fire, etc. Do not use for drinking water.

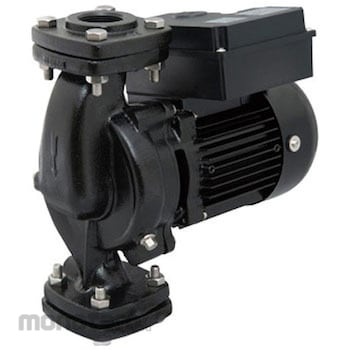

TSURUMI MANUFACTURING Hot and cold water circulation pump TPBG(U)Z type
#Grup produk P114873190
Spesifikasi
| Casing Material | FC180,CAC401(TPBG(U)Z) |
|---|---|
| Discharge Rate (L/minute) | 20/40 |
| Installation Location | Indoor |
| Liquid Temperature (°C) | 0~90 |
| Mass (kg) | 6 |
| Material (Impeller) | CAC401 |
| Material (spindle) | SUS430 (wetted part) |
| Maximum Lifting (m) | 5.1/3.4 |
| Number of Poles | 2-pole |
| Output (kW) | 0.05 |
| Protective device | Protector (built-in) |
| Structure (Bearing) | Sealed ball bearing |
| Structure (Impeller) | Close |
| Structure (shaft seal) | Mechanical seal |
| Type | special horizontal |
| Voltage (V) | Single phase 100 |
