Uses an adhesive that has high heat resistance and does not corrode copper.
Especially for insulation applications that require heat resistance and thinness. For insulation of coils, transformers and capacitors.
*Due to the nature of the product, there may be a misalignment between the tape itself and the core of the roll for narrow products, but this does not affect the quality. *There may be a different colored tape in the middle of the product, but this is called a splice, which connects the product tape to a new product tape when the product tape runs out, and does not affect the tape product. *Processed by: 3M authorized processing and sales store

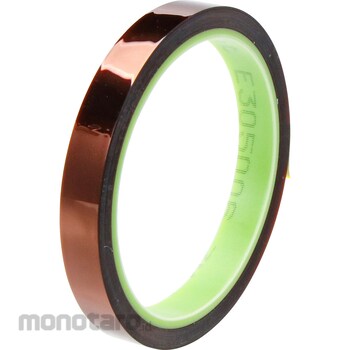

3M Polyimide Tape PIA220
#Grup produk P114865739
Sebelum PPN:
Rp319.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Adhesive | Acrylic |
|---|---|
| Base Material | Polyimide film |
| Color | Brown |
| Dielectric Breakdown Voltage (kV) | 5 |
| Elongation (%) | 35 |
| Feature | Heat resistance, flame retardant |
| Flame retardance | UL510 (file number E305006, category OANZ2) |
| Insulation Resistance (MΩ) | >1x10⁶ |
| Main application | For electrical insulation |
| Rated Temperature (°C) | 220 |
| Standard | Compliant with UL standards (File E305006) |
| Tape Length (m) | 33 |
| Tape Thickness (mm) | 0.05 |
| Tensile Strength (N/10mm) | 34.72 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationFlame retardant (UL510)
