This compact type offers excellent workability. It quantifies the gripping force of the chuck, improving quality control and safety. [Compact, all-in-one design]: The detector and display are integrated into one unit. Lightweight at 1.3 kg, it's easy to handle! [No zero adjustment required]: Automatic zero adjustment allows for immediate measurement! [Measurement value memory function]: Stores three necessary measurement values for later review! [Power saving function]: Saves power with the automatic power-off function! [Warning message display]: Displays alarms for low battery voltage, excessive input, and out-of-range automatic zero adjustment.
For measuring the gripping force of a chuck
*Calibration certificate is optional.

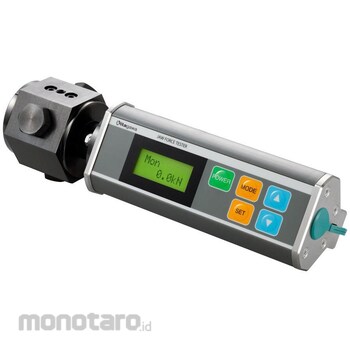

Kitagawa Iron Works Static chuck gripping force meter
#Grup produk P114845151
Spesifikasi
| Acceptable Overload | 1.5 |
|---|---|
| Accuracy | ±2%R.O. |
| Display | LCD character display (8 x 2 lines with backlight) |
| Display unit | 0.1kN |
| Included Accessories | Load button AH (height 7 mm) x 3, load button BH (height 12 mm) x 3, operation check battery x 2 |
| Mass (kg) | 1.3 |
| Measurement Range | 0.5~100kN |
| Operating Humidity Range (%RH) | Within 80 (no condensation) |
| Operating Temperature Range (°C) | 0~50 |
| Power Supply | Lithium battery (CR123A x 2) |
| Power Supply Voltage (V) | DC5±5% |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Capacity | 100kN |
| Score | Grasp: 3 or 2 places |
| Shape of Switch | seat switch panel |
