A small and short holder ideal for Swiss type and comb tooth type NC lathes.
The nut is an ER (hexagon / hook) type.
The shank diameter is inches, and there are two types, 5/8 "and 3/4".
Wrench collet is sold separately.
Shank straightness (runout accuracy): ± 0.0010 mm to 0.0030 mm at a position 300 mm from the tip of the holder.

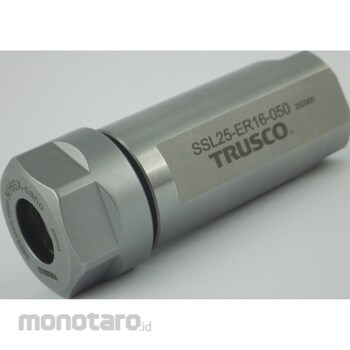

TRUSCO Collet Holder for NC Lathe ER Short Nose Collet Holder SSL Type Inch
#Grup produk P114836977
Kondisi Barang:
Spesifikasi
| AS ONE Part Number | 64-8695-73 |
|---|---|
| Applicable Wrench | W-ER16 |
| Finish Material | SCM415 |
| Mass (g) | 400 |
| Outer Diameter (mm) | Nut diameter 28 |
| Overall Length (mm) | 142 |
| Shank Diameter | 3/4 inch |
| Suitable Collet | ER16 |
| Total Length L1 (mm) | 120 |
| Total length l2 (mm) | 22 |
| Trusco Part No. | 207-6932 |
