A double-headed collet holder that can process workpieces on both sides of the main spindle and sub spindle with a single holder.
The nut is an ER (hexagon / hook) type.
The shank diameter is metric, and there are two types, 22 mm and 25 mm.
Wrench collet is sold separately.
Shank straightness (runout accuracy): ± 0.0010 mm to 0.0030 mm at a position 300 mm from the tip of the holder.

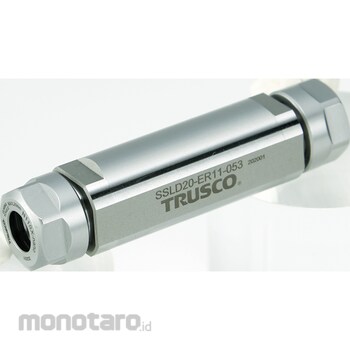

TRUSCO Collet Holder for NC Lathe ER Double-ended Collet Holder SSLD Type
#Grup produk P114836870
Kondisi Barang:
Spesifikasi
| AS ONE Part Number | 64-8695-98 |
|---|---|
| Applicable Wrench | W-ER11 |
| Finish Material | SCM415 |
| Mass (g) | 300 |
| Outer Diameter (mm) | Nut diameter 19 |
| Overall Length (mm) | 82 |
| Shank Diameter | 25 |
| Suitable Collet | ER11 |
| Total Length L1 (mm) | 52 |
| Total length l2 (mm) | 15 |
| Trusco Part No. | 207-6731 |
