A multi-stage nozzle ejector with a stackable structure that secures a high vacuum of -94kPa and a large suction flow rate of up to 1110L/min [ANR].
*If a silencer is not used or centralized piping is used, if there is dust in the air or in the piping, the backflow of air from the exhaust port (EX) when the operation is turned off will cause dust to enter the product and cause damage to the product. Performance may be affected. *Reducing the number of silencers reduces performance. *Do not apply positive pressure exceeding 0.3 MPa, such as vacuum breaking air, to the vacuum circuit. It may damage the check packing.

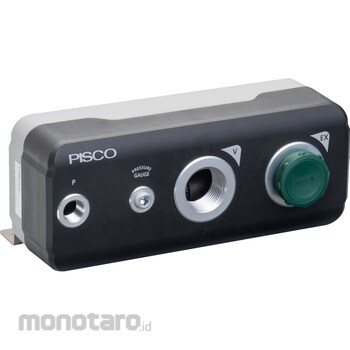

PISCO vacuum generator VLM
#Grup produk P114781154
Sebelum PPN:
Rp5.799.900 - Rp19.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Air Supply Port Size P | Rc1/4 |
|---|---|
| Nozzle diameter (mm) | 1.6 |
| Operating Pressure (MPa) | 0.3~0.7 |
| Operating Temperature Range (°C) | 5 ~ 50 (No Freezing) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable fluid | Air |
| Supply Pressure (MPa) | 0.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*If a silencer is not used or centralized piping is used, if there is dust in the air or in the piping, the backflow of air from the exhaust port (EX) when the operation is turned off will cause dust to enter the product and cause damage to the product. Performance may be affected. *Reducing the number of silencers reduces performance. *Do not apply positive pressure exceeding 0.3 MPa, such as vacuum breaking air, to the vacuum circuit. It may damage the check packing.Feature
A multi-stage nozzle ejector with a stackable structure that secures a high vacuum of -94kPa and a large suction flow rate of up to 1110L/min [ANR].Ulasan Produk
