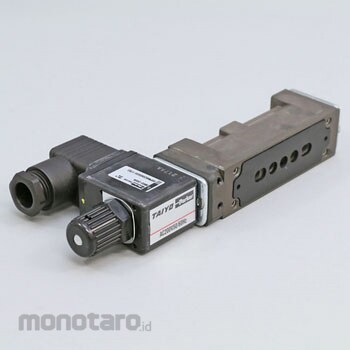

TAIYO (formerly Kuroda Pneumatics) SH valve Spool poppet type (Type H) (5HR-08M)
#Grup produk P114768791
Sebelum PPN:
Rp3.699.900 - Rp4.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector Diameter | A / B port: G1 / 4 |
|---|---|
| Driving System | Pilot type normal open type |
| Effective Section Area (mm²) | 12 |
| Lubrication | Not required (refueling is also possible, additive-free turbine oil 1 type in the case of refueling ISO VG32 equivalent) |
| Manual Operation Type | Push type |
| Mass (kg) | 0.52 |
| Mounting Side | freedom |
| Number of Ports | 5 ports |
| Operating Pressure Range (MPa) | 0.15~1.0 |
| Operating Temperature Range (°C) | +5 to +50 (ambient temperature and fluid temperature) |
| Response Time (s) | ON: 0.025 or less, OFF: 0.035 or less |
| Suitable For | Valve type for manifold |
| Suitable fluid | Air |
| Type of Switching | return |
| Withstand Pressure (MPa) | 1.6 |
