There is almost no liquid dripping during coupling separation, and liquid leakage to the surrounding environment can be minimized.
Minimizes air intrusion into the flow path that occurs when coupling is connected.
You can choose an identification function (option) to prevent connection errors.
For cooling and temperature control applications.

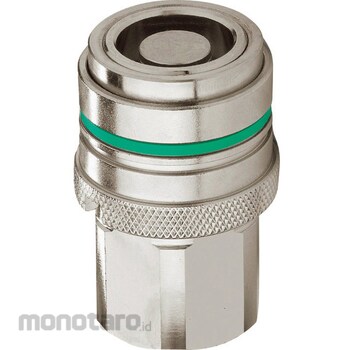

CEJN Series 567 non-drip coupling
#Grup produk P114757917
Spesifikasi
| Connector Thread | G1 / 2 female thread |
|---|---|
| Height (mm) | 52.5 |
| Length (mm) | 34 |
| Mating Connection Size | G1 / 2 male screw |
| Maximum Operating Pressure (MPa) | 8 |
| Operating Temperature Range (°C) | -20~150 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable fluid | water, hot water |
| Width (mm) | 34 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
There is almost no liquid dripping during coupling separation, and liquid leakage to the surrounding environment can be minimized.Minimizes air intrusion into the flow path that occurs when coupling is connected.
You can choose an identification function (option) to prevent connection errors.
Use
For cooling and temperature control applications.Ulasan Produk
