It is a screw-in type. It is a three-point type of joint body, nut, and sleeve. DK tube dedicated fitting.
A metal fitting that connects the DK tube and copper tube with a touch panel.
Nickel-plated product.

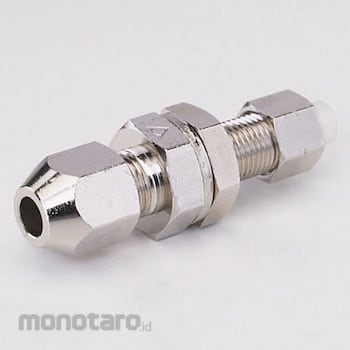

Nitta Quick seal copper tube connection panel touch connector
#Grup produk P114756431
Spesifikasi
| Applicable copper pipe diameter | 6.0mm |
|---|---|
| Dimension D2 (mm) | 2.8 |
| Dimension L (mm) | 51 |
| Dimension S (mm) | 4.6 |
| Mass (g) | 49 |
| Maximum Operating Pressure (MPa) | 1 |
| Negative pressure performance (kPa) | -101.294 |
| Operating Temperature Range (°C) | (Air) -40 °C ~ + 60 °C |
| Shape | Copper tube connection panel touch connector |
| Suitable Tube | (DK tube) 6mm |
| Suitable fluid | Air |
| Tube Insertion Length F (mm) | 15 |
| Width Across Flats H2 (mm) | 12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
It is a screw-in type. It is a three-point type of joint body, nut, and sleeve. DK tube dedicated fitting.A metal fitting that connects the DK tube and copper tube with a touch panel.
Nickel-plated product.
