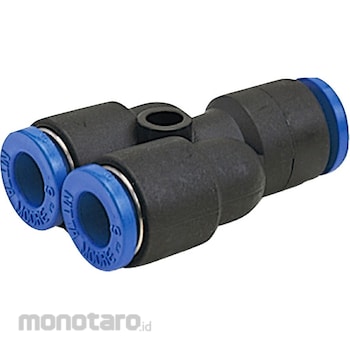

Nitta Push One E Series Y Union
#Grup produk P114755876
Spesifikasi
| Applicable Pipe Outer Diameter (inch) | (d1)5/16 |
|---|---|
| Applicable tube outer diameter d2 (inch) | 5/16/2026 |
| Dimension D1 (mm) | 15 |
| Dimension D2 (mm) | 15 |
| Dimension L (mm) | 42.7 |
| Dimension L11 (mm) | 28.7 |
| Dimension P3 (mm) | 16.3 |
| Dimension P4 (mm) | 14.2 |
| Dimension W (mm) | 14.5 |
| Mass (g) | 14 |
| Maximum Operating Pressure (MPa) | 1 |
| Operating Temperature Range (°C) | (Air) -20 to +80, (water) 0 to +40 |
| Shape | Y Union |
| Suitable fluid | Air, water |
| Tube insertion length F1 (mm) | 16 |
| Tube insertion length F2 (mm) | 16 |
