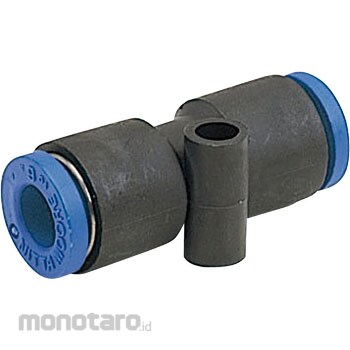

Nitta Push One E Series Union Connector
#Grup produk P114755812
Spesifikasi

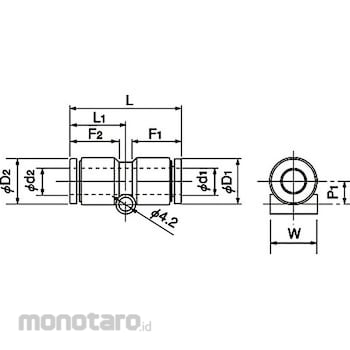

| Applicable Pipe Outer Diameter (inch) | (d1)1/2 |
|---|---|
| Applicable tube outer diameter d2 (inch) | 1/2/2026 |
| Dimension D1 (mm) | 21.5 |
| Dimension D2 (mm) | 21.5 |
| Dimension L (mm) | 43.9 |
| Dimension L1 (mm) | 22 |
| Dimension P1 (mm) | 10.3 |
| Dimension W (mm) | 21 |
| Mass (g) | 19 |
| Maximum Operating Pressure (MPa) | 1 |
| Operating Temperature Range (°C) | (Air) -20 °C ~ + 80 °C, (Water) 0 °C ~ + 40 °C |
| Shape | Union connector |
| Suitable fluid | Air, water |
| Tube insertion length F1 (mm) | 21 |
| Tube insertion length F2 (mm) | 21 |
