Improved strength and corrosion resistance SUS318 is used for the metal part of the main body to prevent elution of metal ions such as copper and zinc.
Uses PBT resin
Corrosion resistance of various air pipes and water pipes
* Working fluid: Air Water ・ Operating temperature range: -5 to 60 ° C (air), 5 to 40 ° C (water)
Maximum working pressure: 1MPa (air), 0.3MPa (water)
Maximum vacuum pressure: 10 Torr (-100kPa)
Body material: Resin (flame-retardant PBT) Metal part: SUS303
CHIYODA TSUSHO Five SUS Mail Branch Y
#Grup produk P114745596
Spesifikasi
| Color | Black |
|---|---|
| Material (Main Unit) | SUS303 |
| Material (screw) | SUS303 |
| Maximum Operating Pressure (MPa) | 1 |
| Operating Temperature Range (°C) | Compressed air, vacuum: -5 to 60 / industrial water: 5 to 40 |
| Operating Vacuum Pressure (kPa) | -100 |

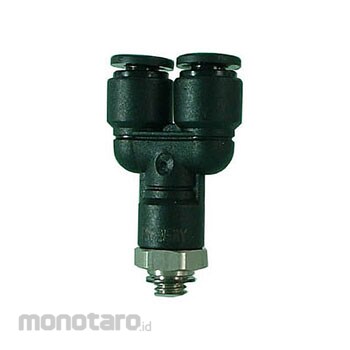

| Shape | Mail branch Y |
| Suitable Tube | TE, TP, MTP (polyurethane tube), TN (nylon tube) |
| Suitable fluid | Compressed air, vacuum, industrial water |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Working fluid: Air Water ・ Operating temperature range: -5 to 60 ° C (air), 5 to 40 ° C (water)Maximum working pressure: 1MPa (air), 0.3MPa (water)
Maximum vacuum pressure: 10 Torr (-100kPa)
Body material: Resin (flame-retardant PBT) Metal part: SUS303
Feature
Improved strength and corrosion resistance SUS318 is used for the metal part of the main body to prevent elution of metal ions such as copper and zinc.Uses PBT resin
Use
Corrosion resistance of various air pipes and water pipesUlasan Produk
