Achieves 30% energy savings compared to conventional models at 100% load, achieves high-precision control of ±0.1°C, compact design, and high-spec design.
If the delivery destination is a private house (detached house / apartment house), the shop name is required. Please note that delivery may not be possible if there is no store name.

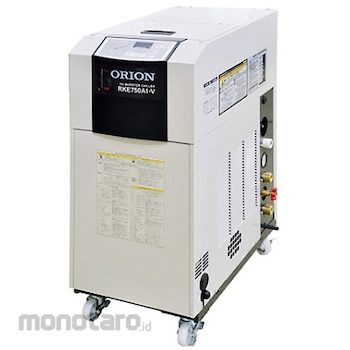

Orion Machinery DC inverter chiller with built-in water tank, air-cooled
#Grup produk P114742571
Spesifikasi
| Capacity (A) | Circuit breaker: 10 |
|---|---|
| Condenser | Fin and tube type forced air cooling |
| Cooler | Plate heat exchanger: SUS316 (brazing: Cu) |
| Cooling Capacity (kW) | 2.7 (room temperature 32 °C / set water temperature 20 °C), 2.9 (room temperature 25 °C / set water temperature 20 °C) |
| Mass (kg) | 73 |
| Operating Ambient Temperature (°C) | -5~43 |
| Operating Current (A) | 4.5/5.3,4.7 |
| Operating Temperature Range (°C) | 5~35 |
| Operation Sound (dB) | 55/57 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 400x688x927 |
| Output (kW) | Pressure pump (cascade type): 0.25kW / Inverter drive |
| Power Capacity (kVa) | 2.1 |
| Power Consumption (kW) | 1.2/1.3, 1.3 |
| Power Input (V) | Three-phase 200 (50 / 60Hz) / 220 (60Hz) |
| Refrigerant | R-410A |
| Required Compressor Power (kW) | 0.7 (for freezing / fully enclosed rotary type inverter drive) |
| Tank Capacity (L) | About 15 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
If the delivery destination is a private house (detached house / apartment house), the shop name is required. Please note that delivery may not be possible if there is no store name.Feature
Achieves 30% energy savings compared to conventional models at 100% load, achieves high-precision control of ±0.1°C, compact design, and high-spec design.Ulasan Produk
