It is a completely oil-free product.
The tube is a push-one connection.
The threaded part is made of SUS304.
Double clean packing.
The main body and screw part rotate.

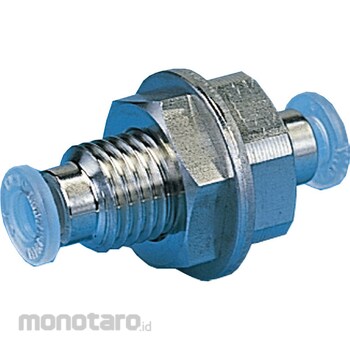

Nitta Chemifit C1S Series Panel Touch Connector
#Grup produk P114741457
Spesifikasi
| Maximum Operating Pressure (MPa) | 0.7 (at20°C) |
|---|---|
| Operating Temperature Range (°C) | (Air) -20 °C ~ + 80 °C, (Water) 0 °C ~ + 80 °C |
| Shape | Panel touch connector |
| Suitable fluid | Air (clean air), water (pure water) |
| Tube Insertion Length F (mm) | 11 |
| Washer Thickness (mm) | 1.6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature

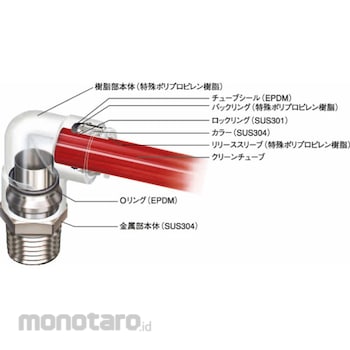

It is a completely oil-free product.The tube is a push-one connection.
The threaded part is made of SUS304.
Double clean packing.
The main body and screw part rotate.
