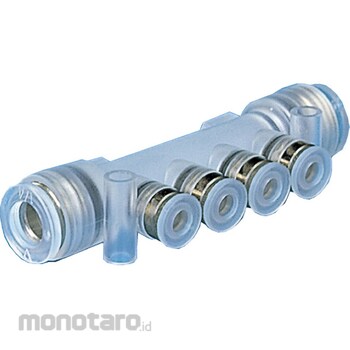

Nitta Chemifit C1 Series Manifold

Sebelum PPN:
Rp5.399.900
Spesifikasi
Applicable Pipe Outer Diameter (inch)(d1)1/8,(d2)1/4
Applicable tube outer diameter d2 (inch)1/4/2026
Dimension D1 (mm)8
Dimension D2 (mm)12.5
Dimension L (mm)61
Dimension L8 (mm)21.5
Dimension P1 (mm)9
Dimension W (mm)12.5
Maximum Operating Pressure (MPa)0.7 (at20°C)
Operating Temperature Range (°C)(Air) -20 °C ~ + 80 °C, (Water) 0 °C ~ + 80 °C
ShapeManifold
Suitable fluidAir (clean air), water (pure water)
Tube insertion length F1 (mm)11
Tube insertion length F2 (mm)15

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
It is a completely oil-free product.
The tube is a push-one connection.
The wetted part is non-metal.
Has excellent dust-free and non-polluting properties.
Has excellent inner surface smoothness.
Double clean packing.
The main body and screw part rotate.
It conforms to the Ministry of Health, Labor and Welfare Notification No. 201 (2006) and the Ministry of Health, Labor and Welfare Notification No. 370 (1959).
Feature
It is a completely oil-free product.
The tube is a push-one connection.
The wetted part is non-metal.
Has excellent dust-free and non-polluting properties.
Has excellent inner surface smoothness.
Double clean packing.
The main body and screw part rotate.
It conforms to the Ministry of Health, Labor and Welfare Notification No. 201 (2006) and the Ministry of Health, Labor and Welfare Notification No. 370 (1959).
