The precision L breaker's low-resistance cutting edge contributes to improved machining accuracy during finishing.
The "MV1030" insert is coated with Al-Rich coating, which provides high coating hardness and oxidation resistance, resulting in extremely excellent wear resistance.
"MV1030" is resistant to thermal shock and exhibits high performance not only in dry cutting but also in wet cutting, which was previously prone to thermal cracking, as well as in intermittent cutting and machining of stainless steel.

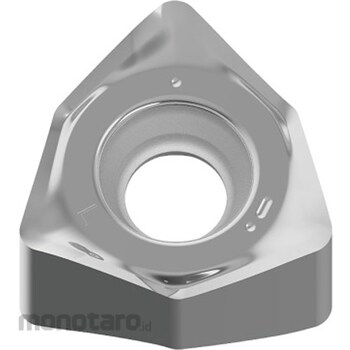

Mitsubishi Materials WWX400 type insert MV1030
#Grup produk P114659110
Spesifikasi
| Applicable Workpiece Materials | P class, M class, K class |
|---|---|
| Corner Radius (mm) | RE:0.8 |
| Cutting Blade Length (mm) | L:0.8 |
| Inscribed circle IC(mm) | 9 |
| Maximum depth of cut (mm) | APMX:5 |
| Thickness s (mm) | 5.3 |
| Trusco Part No. | 701-2030 |
| Wiper blade Width (mm) | BS:1.2 |
