It has both rigidity and chip evacuation performance, and non-step machining is possible even in deep holes with L/D=10.
Drilling of steel, stainless steel, cast iron
*Please use a collet type drill chuck or milling chuck.
*Please apply enough cutting oil.
*Depending on the machining conditions, it may be difficult to eject chips during non-step machining, or chip elongation may occur.
*In that case, please perform step processing. The step amount should be DC x 1 to DC x 3 as a guide.

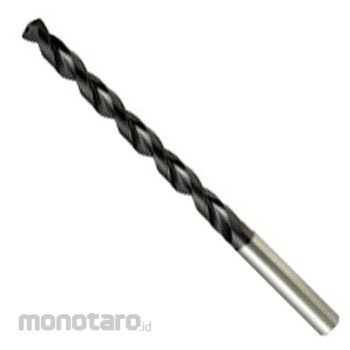

Mitsubishi Materials Violet high precision drill (J) VAPDJ series
#Grup produk P114657112
Spesifikasi
| Coating | Violet coating |
|---|---|
| Material | High grade high alloy high speed (HG HSS) |
| Number of Tips | 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shank Diameter Tolerance | h7 |
| Thinning | X thinning |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Oil hole: None *Drill diameter tolerance (mm): -0.018~0 *Dimension difference between tip and shoulder PL (mm): 0.8 *Functional length LF (mm): 102
