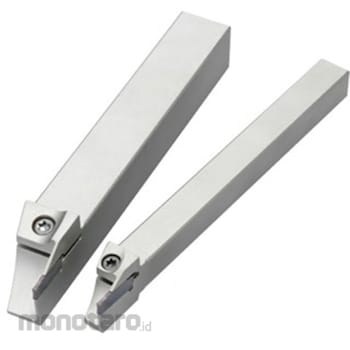

Mitsubishi Materials Outer diameter grooving parting turning tool for high precision machining of small items GYS series 00° straight holder (for small lathes)

Reliable grooving realized by our unique fastening system.
Highly reliable insert clamp: Safety key locks insert movement. The convex curved support allows for highly accurate clamping.
Holder for high-precision machining of small items: New shape with extremely high rigidity suppresses vibration and dimensional changes, solving problems during cut-off machining.
Overhang amount suitable for tooling of the machine used: The head length corresponds to the maximum machining diameter of the CNC automatic lathe's gang blade machine and turret machine.
Strong upper jaw: The stronger upper jaw reduces chatter vibration.
Lower jaw that does not fluctuate: Greatly suppresses the phenomenon that the center of the insert lowers during machining due to the load (cutting resistance) during cutting.
Enhanced insert mounting: By expanding the insert mounting area, deformation (deflection) of the work material shape is suppressed.
Grooving/parting turning
*The maximum grooving depth (CDX) listed varies depending on the insert used.
*The maximum cut-off diameter (CUTDIA) shown varies depending on the insert used.
*The dimensions listed are the values for the standard insert. If other inserts are installed, LF, LH, and LH3 may be different.
*The maximum grooving depth (CDX) listed is limited by the diameter of the workpiece material.
