The ultimate insert with low chatter and quiet cutting noise.
The uniquely developed "double-sided Z-shaped" insert combines the features of conventional positive and negative inserts, achieving low resistance and sharpness even though it is a negative (double-sided) insert.
WSX445 has a low resistance design comparable to positive (single-sided) inserts. In particular, it shows a low resistance value for back force.
Chips are formed in a spiral shape and are discharged to the outside of the cutter. This has the effect of preventing chips from getting caught and scratching the cutter body.
* Wet cutting is recommended when the finished surface is important. (Life is shorter than dry cutting.)

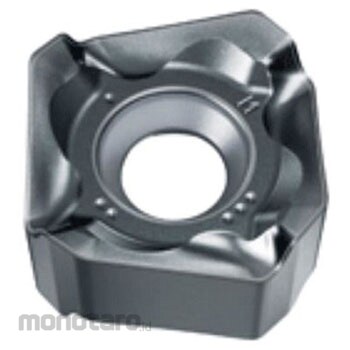

Mitsubishi Materials Insert with breaker for WSX445 type
#Grup produk P114634713
Sebelum PPN:
Rp1.999.900 - Rp4.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimension S10 (mm) | 6.3 |
|---|---|
| Inscribed circle IC(mm) | 14 |
| Insert Thickness (mm) | 8.4 |
| Material | Cemented carbide |
| Number of Corners to Use | (possible)8 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Square Size (mm) | 1.2 |
| Wiper blade Width (mm) | 1.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationFirst recommendation / All-round type / Spot chamfering (mm): 6.3
