A reliable grooving cut-off tool that has a long life and is easy to use.
Various insert variations. Breaker system compatible with machining applications.
Added inserts for low feed parting. The low-resistance design and improved dimensional accuracy reduce the amount of lead remaining and achieve a good finished surface.
Parting off turning
*The total length (L dimension) varies depending on the applicable breaker.

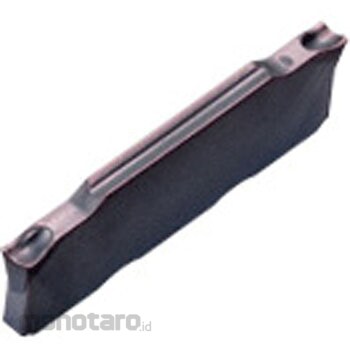

Mitsubishi Materials GY series insert for parting machining R05-GS breaker (for low feed machining)
#Grup produk P114629641
Spesifikasi
| Blade Thickness Tolerance (mm) | ±0.03 |
|---|---|
| Blade Width (mm) | 1.2 |
| Chip breaker | R-GS |
| Classification | [Outer surface] Unground product |
| Maximum Cutting Depth (mm) | 12.22 |
| Number of Tips | 2 corners |
| Offset Angle (°) | [Insert with handle] 5 |
| Overall Length (mm) | 14.7 |
| R Tolerance (mm) | ±0.05 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Right or Left Hand | Without permission |
| Sheet Size | B |
| Square Size (mm) | [Right side] 0.1 [Left side] 0.1 |
