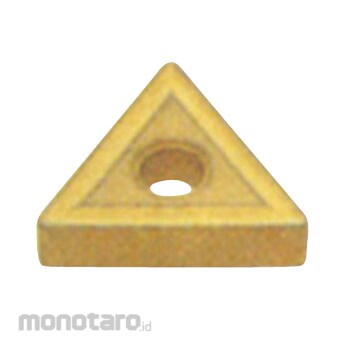

Mitsubishi Materials Chip TNMG
#Grup produk P114619440
Spesifikasi
| Abrasive Materials | Cemented carbide: cast iron |
|---|---|
| Accuracy | M |
| Chip breaker | All around |
| Clearance Angle (°) | 0 (Zero) |
| Corner Height Tolerance (mm) | ±0.08~±0.18 |
| Corner Radius (mm) | 0.4 |
| Cutting Blade Length (mm) | 16.5 |
| Cutting area | Medium cutting |

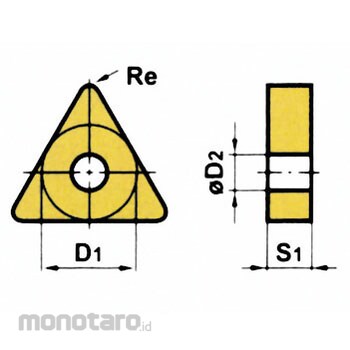

| Dimension D1 (mm) | 9.525 |
| Dimension D2 (mm) | 3.81 |
| Dimension Re (mm) | 0.4 |
| Dimension S1 (mm) | 4.76 |
| Material | HTi05T |
| Shape | Equilateral triangle 60 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05~±0.13 |
| With Or Without Hole | Yes |
