This tape was developed for inter-layer / exterior insulation of transformers and coils.
Has excellent electrical insulation.
Has excellent dimensional stability.
Has excellent heat resistance. (Normal operating temperature 120 ° C)
For electrical insulation of transformer coils.
* Core diameter: 75Φ
*A cutter is required for cutting. *The base material thickness is 0.025mm, and the overall thickness is 0.051mm.

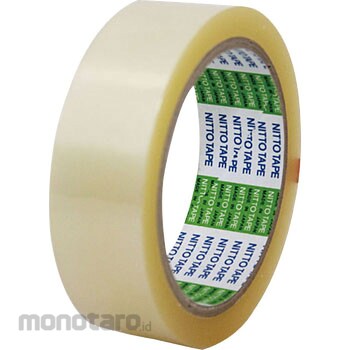

Nitto (Nitto Denko) Polyester adhesive tape No.31B #25
#Grup produk P114562407
Sebelum PPN:
Rp8.199.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Adhesion Strength (N/25mm) | 7.3 |
|---|---|
| Adhesive | Acrylic |
| Adhesive Strength (N / 19mm) | 5.6 |
| Base Material | Polyester film |
| Color | Clear |
| Feature | Heat-resistant |
| Operating Temperature Range (°C) | -30~120 |
| Tape Length (m) | 50 |
| Tape Thickness (mm) | 0.051 |
| Tensile Strength (N/25mm) | 151 |
| Thickness of Base Material (mm) | 0.025 |
