Product 70-A

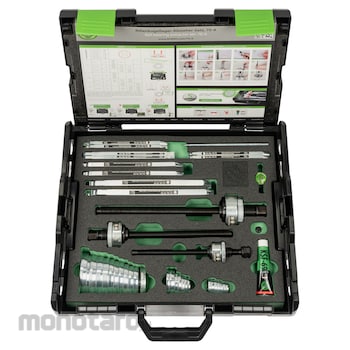

3-piece ball bearing puller set for small, medium deep groove ball bearings
The 70-A 8883-piece ball bearing puller set is used for non-destructive removal of deep groove ball bearings without disassembly of the shaft in crafts, industry, and workshop. With these pullers, bearings that are simultaneously seated in a housing and on a shaft can be easily and quickly removed and, if not already damaged beforehand, can be reused. The series 70 impresses with its specially developed jaws for precise installation in the bearing raceways, enabling safe removal of small to large bearings.
Application
For non-destructive removal of roller ball bearings without disassembling the shaft in craftsmanship, industry, and workshops.
Spare Parts
70-1
Ball bearing puller without jaws with wrench size 17 mm, total height 224 mm
70-2
Ball bearing puller without claw with wrench size 17 mm, total height 270 mm
70-3
Ball bearing puller without jaws with a key width 24 mm, total height 320 mm
70-711
Set of jaws ball bearing ISO 6000, 6001, 6002, 6003, 6200
70-712
Pulling jaws set ball bearing ISO 6004, 6005, 6006, 6201, 6202, 6203, 6300
70-713
Set of jaws ball bearing ISO 6204, 6205, 6301, 6302, 6303
70-721
Set of jaws for ball bearings ISO 6007, 6008, 6009, 6010, 6011, 6012, 6013
70-722
Jaws set ball bearing ISO 6011, 6012, 6206, 6207, 6304, 6005, 6306
70-731
Pulling jaws set ball bearing ISO 6208, 6209, 6210, 6307, 6403, 6407
70-732
Set of jaws ball bearing ISO 6211, 6212, 6308, 6309, 6310, 6311, 6404, 6405, 6406, 6407, 6408
KUKKO Complate Set Off Ball Bearing
#Grup produk P114559023
Spesifikasi
| Ball Bearing ISO | 6000–6013, 6200–6212, 6300–6311, 6403–6408 |
|---|---|
| CO₂ Footprint (kg CO₂e) | 1.64 |
| Case Depth (mm) | 357 |
| Case Height (mm) | 151 |
| Case Length (mm) | 442 |
| Case Material | Plastic |
| Case Type | K-L-BOXX-L-136 |
| Components | 70-1, 70-711, 70-712, 70-713, 70-2, 70-721, 70-722, 70-3, 70-731, 70-732 |
| For Ball Bearings with Inside Diameter (inch) | 3/8 to2 3/8 |
| For Ball Bearings with Inside Diameter (mm) | 10 to 60 |
| For Ball Bearings with Outside Diameter (inch) | 1 1/32 to 4 3/4 |
| For Ball Bearings with Outside Diameter (mm) | 26 to 120 |
| Global Sales Capability Given | Yes (REACH, RoHS, POP, PROP65, TSCA) |
| Hook Length (mm) | 150 to 217 (5 7/8 to 8 9/16inch) |
| Load Capacity (kg) | 25 |
| Number of Handles | 2 |
| Number of Parts | 59 |
| Side Handle Present | Yes |
| Stackable | Yes |
| Suitable for Sortimo Storage System | Yes |
