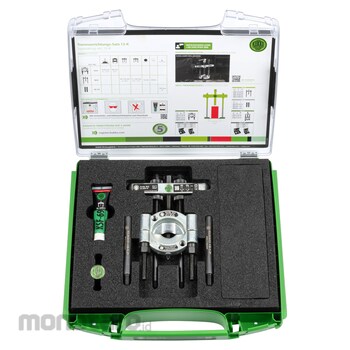

KUKKO Complate Set of Separators and Pulling Device

Product 15-K
4-piece pulling device set with separation diameter 8 mm - 60 mm & reach 250 mm

The 4-piece pulling device set 15-K is used for Pulling ball bearings, roller bearings, inner rings, and other flat-lying parts in trade, industry, and workshops when there is not enough space for jaws. The separating-and-pulling process is capable of gently separating those parts first before they can be pulled from the outside. This 4-piece set includes one pulling device and one puller, as well as a pair of extensions, ensuring the full range of applications.

Application
To pull ball bearings, roller bearings, inner rings, and other flush-mounted parts in craft, industry, and workshop.

Spare Parts
015122
side bolt with nut for pulling devices 15-K, 15-0

018175
Side screw for puller 17-K, 18-0, 15-K

15-0
Pulling device with separation diameter 8 mm - 60 mm, 21 mm usable cutting depth (mounting thread M10)

18-0
Puller, up tospread, 150 mm reach M10

18-0-T
Crossbar for puller 17-K, 18-0, 15-K

19-1-P
Two extensions for pullers (100 mm extension, mounting thread M10)

612130
Mechanical pressure spindle Ø 12 mm for spindle thread M 12x1,5, 130 mm length, 4,5 mm thread
