A general-purpose insert tip used for medium cutting of P (steel).
For medium cutting
* Be sure to wear protective equipment when using the product as there is a risk of injury.
* Do not use for any purpose other than its intended purpose.
* The surface color of the product has changed, and the color will change in the future, but the specifications, functions, and quality of the product will not change.

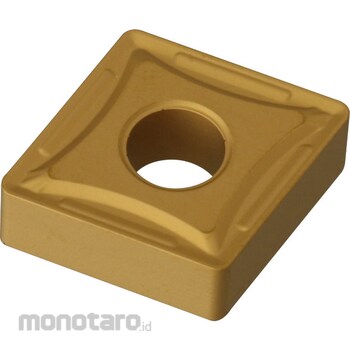

monotaro Turning Insert CNMG
#Grup produk P114440345
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Applicable Workpiece Materials | P steel: P15 to P30 |
|---|---|
| Chip breaker | Double-sided MBG |
| Clearance Angle (°) | 0 |
| Cutting Blade Length (mm) | 12 |
| Material | MTR3020 |

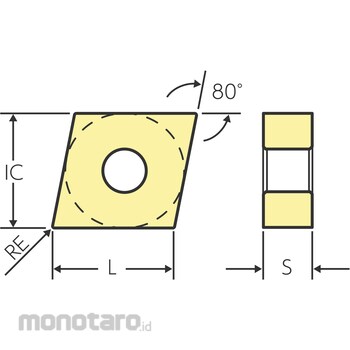

| Shape | Diamond shape 80 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05~0.15 |
| Type | Negative |
| With Or Without Hole | Yes |
