Inserts that enable higher quality machining.
We can perform mirror finishing on non-ferrous metals and highly transparent resin processing.
Mirror finish on aluminum alloys and copper, highly transparent resin finish on thermoplastic resin (acrylic)
*For SDHW09T3AZFR, please install it in only one groove.
*When using SDHW09T3AZFR, set the feed rate to 1 blade.
*For all other insert mounting parts, be sure to use SDHT09T308FR-NM inserts for balancing purposes.
*Single crystal diamonds may have different appearances, but this does not affect their performance.
*When the insert is installed, the outer diameter will be 2mm smaller than DC.

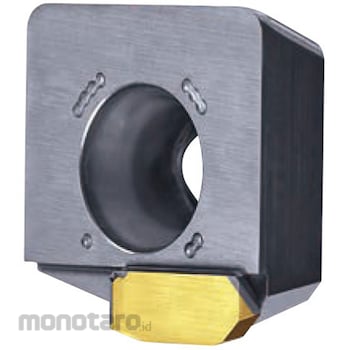

OSG Phoenix PFDC Insert DM001 (Single Crystal Diamond)
#Grup produk P114437165
Kondisi Barang:
Spesifikasi
| Applicable Cutter | PFDC |
|---|---|
| Blade (mm) | Scraper: 3 (minor cutting edge) BS |
| Clearance Angle (°) | 10 |
| Material | Single crystal diamond |
| Number of Cutting Edges | 1 |
| Offset Angle (°) | 45(KCH) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Thickness (mm) | 3.97 |
