A shape with high rigidity and sharp cutting ability due to the negative blade shape and positive clearance angle.
Economical design with 8 corners on the front and back (16 corners in total). Maximum depth of cut 3.5mm. Improved surface roughness due to wiper edge shape Wiper edge = 2mm.
By setting the numbers of each insert to match, it is possible to suppress variations.
*Please purchase the wrench separately.
*Please adjust the cutting conditions appropriately according to the machining environment.

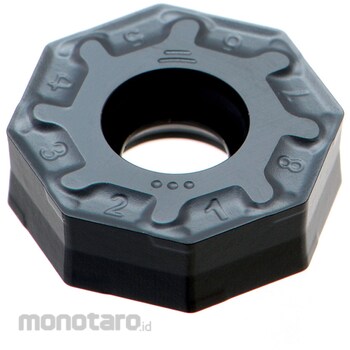

OSG Phoenix PAO insert
#Grup produk P114437129
Kondisi Barang:
Sebelum PPN:
Rp4.299.900 - Rp4.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy notation | K |
|---|---|
| Clearance Angle (°) | 3 |
| Corner Height Tolerance (mm) | ±0.013 |
| Cutting Blade Length (mm) | Wiper edge (sub-cutting edge) BS2 |
| Dimension L (mm) | 6 |
| Inscribed circle IC(mm) | 17.1 |
| Number of Cutting Edges | 16 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shape | Regular octagon |
| Socket Shape | Some cylindrical holes + double-sided chamfering (40°-60°) |
| Square Size (mm) | 0.8 |
| Thickness (mm) | 5.66 |
| Thickness Tolerance (mm) | ±0.025 |
| Tolerance of Inscribed Circle (mm) | ±0.05~±0.15 |
| With Or Without Hole | Yes |
| With or Without Breaker | Both sides |
