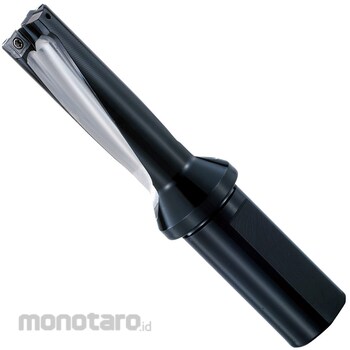

OSG Phoenix Indexable Drill P3D

The indexable drill PD series exhibits excellent chip evacuation due to the guide groove at the tip of the body and high smoothness.
We offer a variety of body variations depending on the hole depth.
Guide groove at the tip of the body realizes smooth chip evacuation. A high-precision finish is added to the groove to further improve chip evacuation.
A 4-corner specification that uses the same insert on the outer periphery and center, making it economical and easy to manage tools. (XCMT03... is 2 corner specification)
(
For machining that requires even more durability, a special insert is provided on the peripheral blade. )
Highly efficient machining is possible with internal oil supply. The insert arrangement balance has been optimized to achieve high feed conditions.
Mild steel, low carbon steel, carbon steel, alloy steel, die steel, stainless steel, cast iron, ductile cast iron, aluminum alloy, heat-resistant alloy, titanium alloy, pre-hardened steel (40-43HRC), tempered steel (50-55HRC): Drilling processing
*Please purchase the wrench separately.
*Please use a high quality water-soluble cutting fluid with a dilution ratio of 20 times or less.
*Water-insoluble cutting fluids are not recommended.
*Clogged oil holes may cause breakage problems. Be sure to attach a filter to the oil supply system.
