The head section exhibits the same machining performance as the solid type, and the versatility of the body section by replacing the head section reduces machining costs.
A blade shape that takes advantage of the design, track record, and know-how of solid end mills.
PXNL (unequal lead, 4-flute, weak twist, roughing shape): Long-life roughing is possible.
Carbon steel, cast iron, alloy steel, tool steel, stainless steel, tempered steel, pre-hardened steel (free cutting): Groove, side, digging machining
*Adjust the coolant nozzle position to prevent chips from getting caught.

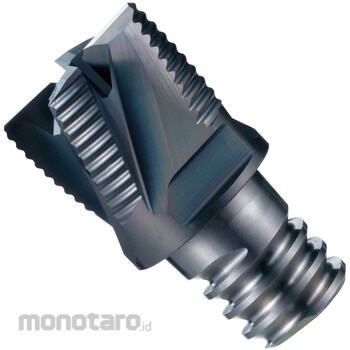

OSG Phoenix Exchangeable Head End Mill Roughing Shape PXNL (Unequal Leads, 4 Flute, Weak Twist, No Oil Hole)
#Grup produk P114436528
Kondisi Barang:
Spesifikasi
| Blade Length (mm) | 7 |
|---|---|
| Corner chamfer width | 0.5mm |
| Grade | XP3225 |
| Helix Angle (°) | 19/21 |
| Neck Diameter (mm) | 9.7 |
| Number of Tips | 4 |
| Overall Length (mm) | 13 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shape | roughing shape |
| Standard | Conclusion: C10 |
| Type | Unequal lead/weak twist |
