The head section exhibits the same machining performance as the solid type, and the versatility of the body section by replacing the head section reduces machining costs.
A blade shape that takes advantage of the design, track record, and know-how of solid end mills.
PXRE (straight edge corner radius shape): Capable of machining high hardness materials.
General structural steel, carbon steel, cast iron, alloy steel, tool steel, tempered steel, pre-hardened steel: digging, flattening, shape cutting
*Adjust the coolant nozzle position to prevent chips from getting caught.

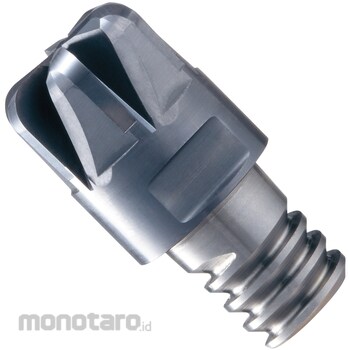

OSG Phoenix Exchangeable Head End Mill Corner Radius Shape PXRE (Straight Blade/No Oil Hole)
#Grup produk P114436449
Kondisi Barang:
Spesifikasi
| Blade Length (mm) | 4.5 |
|---|---|
| Corner Radius (mm) | 2 |
| Grade | XP6305 |
| Neck Diameter (mm) | 9.7 |
| Number of Tips | 4 |
| Overall Length (mm) | 13 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shape | corner radius shape |
| Standard | Conclusion: C10 |
| Type | Straight blade |
