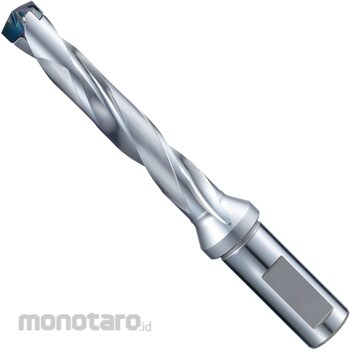

OSG Phoenix Exchangeable Head Drill PXDZ 5D

Strong fastening using a unique method: A unique fastening method achieves strong fastening without using screws.
Eliminates unstable factors such as screw strength, allowing for easy installation and removal.
Designed flute shape ideal for large diameter machining. The backing process prevents chips from getting caught during machining.
Smooth chip evacuation due to groove finishing by polishing.
Highly efficient machining is possible with internal oil supply.
Select the most suitable head for each workpiece material. By replacing the head, one body can handle multiple machining diameters.
Mild steel, low carbon steel, carbon steel, alloy steel, cast iron, ductile cast iron, aluminum alloy, tempered steel (~35HRC): Drilling
*The total body length (length when the head is not installed) is listed in the PXDZ name.
*Please use a high quality water-soluble cutting fluid with a dilution ratio of 20 times or less.
*Clogged oil holes may cause breakage problems. Be sure to attach a filter to the oil supply system.
*Since PXD does not use clamp screws, it is necessary to set up a machining environment that prevents the fasteners from loosening.
*Care must be taken especially when drilling holes.
