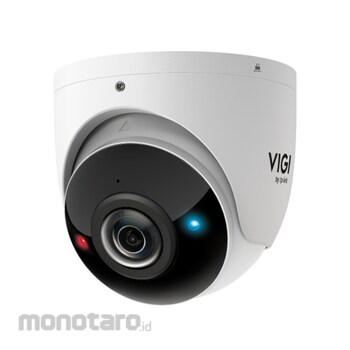

VIGI InSight Series Camera Panoramic
#Grup produk P114385525
Spesifikasi
| API | Open Network Video Interface (Profile S/T/G) |
|---|---|
| Alarm | 1 Alarm In, 1 Alarm Out; Red-Blue Warning Lights |
| Alarm Linkage | Memory Card Video Recording, Upload to FTP Server, Alarm Output Device, Push Notifications, Send to Alarm Server, Active Defence-Sound Alarm, Active Defence-Light Alarm, Email Alarm |
| Aperture | F2.0 |
| Audio | 1 Audio In, 1 Audio Out |
| Audio Bit Rate (kbps) | 64 (G.711 alaw) |
| Audio Communication | Two-Way Audio |
| Audio Compression | Yes |
| Audio Input | Built-in Microphone, Audio In Interface |
| Audio Output | Built-in Speaker, Audio Out Interface |
| Audio Sampling Rate (kHz) | 8 |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login), Alarm Input Device |
| Bit Rate Control | CBR, VBR |
| Built-in Microphone | Yes, Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Cloud | Yes |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| Environment Noise Filtering | Yes |
| Focal Length (mm) | 1.65 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| IR LED (nm) | Quantity: 4; Range: 65.62ft (20m); Wavelength: 850 |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Image Parameters Switch | Yes |
| Image Sensor (inch) | 1/2.7 Progressive Scan CMOS |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Lens Mount | M12 |
| Material | Metal |
| Maximum Resolution | 3840x2160 |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR light |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| ONVIF | Yes |
| OSD Setting | Yes |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Operating Humidity (%) | 95 or Less (Non-Condensing) |
| Operating Temperature (°C) | -30 to 60 (-22°F to 140°F) |
| Package Content | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Power | DC Power Port |
| Privacy Mask | Up to 4 Masks |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| Reset Button | Yes |
| SNR (dB) | ≥ 52 |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Shutter Speed (s) | 1/3 to 1/10000 |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Slow Shutter | Yes |
| Storage Humidity (%) | 95 or Less (Non-Condensing) |
| Storage Temperature (°C) | -40 to 60 (-40 °F to 140 °F) |
| Type | Fixed Focal Lens |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 1024 Kbps |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| Wide Dynamic Range (dB) | 120 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Main Stream• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240
• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Smart Event
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
