The breaker can also be used for machining various types of difficult-to-cut materials such as titanium alloys and heat-resistant alloys. Achieves both excellent wear resistance and chip disposal, and improves equipment and quality problems caused by unstable tool life and chips in conventional chip breakers.

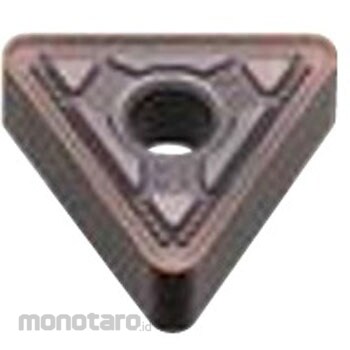

*The product image is a representative image.
Sumitomo Electric Hard Metal Turning Tip TNMG-EG
#Grup produk P114350556
Spesifikasi
| Accuracy Grade | M |
|---|---|
| Chip breaker | EG |
| Clearance Angle (°) | 0 |
| Corner Height Tolerance (mm) | ±0.08 |
| Cutting Blade Length (mm) | 16.5 |
| Cutting area | Medium cutting |
| Inscribed Circle (mm) | (IC)9.525 |
| Right or Left Hand | Without permission |
| Shape | Equilateral triangle 60 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05 |
| Type | Negative |
| With Or Without Hole | Yes |
