Grinding type general-purpose breaker for medium cutting.
*The product image is a representative image.

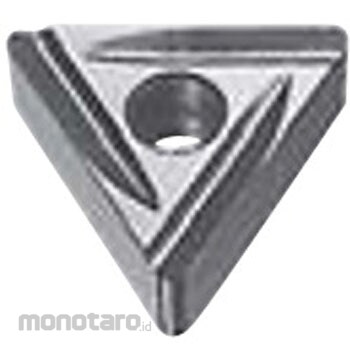

Sumitomo Electric Hard Metal Turning insert TNMG-UM
#Grup produk P114349718
Spesifikasi
| Abrasive Materials | Steel |
|---|---|
| Accuracy Grade | M |
| Chip breaker | UM |
| Clearance Angle (°) | 0 |
| Corner Height Tolerance (mm) | ±0.08 |
| Cutting Blade Length (mm) | 16.5 |
| Cutting area | Medium cutting |
| Grade | T2500Z |
| Inscribed Circle (mm) | (IC)9.525 |
| Material | Coated cermet |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Right or Left Hand | Without permission |
| Shape | Equilateral triangle 60 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05 |
| Type | Negative |
| With Or Without Hole | Yes |
| With or Without Breaker | Both sides |
