The breaker can also be used for machining various types of difficult-to-cut materials such as titanium alloys and heat-resistant alloys. Achieves both excellent wear resistance and chip disposal, and improves equipment and quality problems caused by unstable tool life and chips in conventional chip breakers.
*The product image is a representative image.

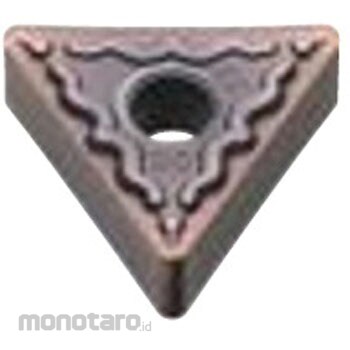

Sumitomo Electric Hard Metal Turning insert TNMG-EF
#Grup produk P114349453
Spesifikasi
| Accuracy Grade | M |
|---|---|
| Chip breaker | EF |
| Clearance Angle (°) | 0 |
| Corner Height Tolerance (mm) | ±0.08 |
| Cutting Blade Length (mm) | 16.5 |
| Cutting area | Finish cutting |
| Inscribed Circle (mm) | (IC)9.525 |
| Right or Left Hand | Without permission |
| Shape | Equilateral triangle 60 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05 |
| Type | Negative |
| With Or Without Hole | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
