Effective for fluctuating depth of cut and chip control for profiling.
*The product image is a representative image.

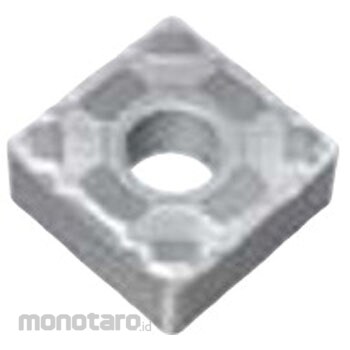

Sumitomo Electric Hard Metal Turning Insert SNMG-LU
#Grup produk P114349295
Spesifikasi
| Accuracy Grade | M |
|---|---|
| Chip breaker | LU |
| Clearance Angle (°) | 0 |
| Corner Height Tolerance (mm) | ±0.13 |
| Cutting Blade Length (mm) | 12.7 |
| Cutting area | Finish cutting |
| Inscribed Circle (mm) | (IC)12.7 |
| Right or Left Hand | Without permission |
| Shape | Square 90 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.08 |
| Type | Negative |
| With Or Without Hole | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
