Excellent chip control and sharpness in low-feed machining. The FB-type chipbreaker for low-feed finishing machining has a variable rake angle design within the nose radius, which increases chip distortion and improves chip breaking.
*The product image is a representative image.

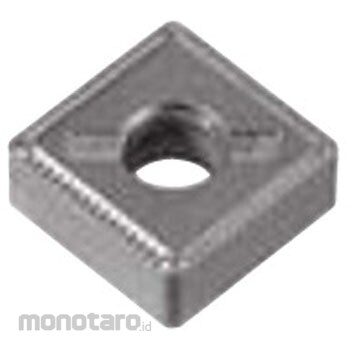

Sumitomo Electric Hard Metal Turning Insert SNMG-FB
#Grup produk P114349152
Sebelum PPN:
Rp1.499.900 - Rp1.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy Grade | M |
|---|---|
| Chip breaker | FB |
| Clearance Angle (°) | 0 |
| Corner Height Tolerance (mm) | ±0.13 |
| Cutting Blade Length (mm) | 12.7 |
| Cutting area | micro cutting |
| Inscribed Circle (mm) | (IC)12.7 |
| Right or Left Hand | Without permission |
| Shape | Square 90 ° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.08 |
| Type | Negative |
| With Or Without Hole | Yes |
