Long lifespan.
Environmental measures.
Membrane structure.
The addition of silicon and chromium significantly improves wear resistance, heat resistance, and welding resistance.
Adoption of a composite ultra-multilayer structure improves chipping resistance.
For guide holes.
*The image is a representative image.

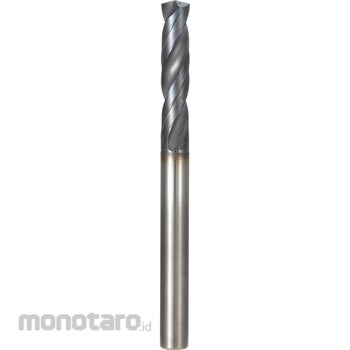

Sumitomo Electric Hard Metal Super Multi Drill PHT Type
#Grup produk P114346191
Spesifikasi
| Abrasive Materials | Carbon and alloy steel up to 0.28% / Carbon and alloy steel 0.29% and above / Tempered steel / High-hardness steel up to 45HRC / Stainless steel / Cast iron / Ductile cast iron |
|---|---|
| Drilled hole depth (l/d) | 3D |
| Fig | 1 |
| Flute Length (mm) | 15.3 |
| Lubricating | Internal lubrication type |
| Material | ACX20 |
| Oil hole | Yes |
| Overall Length (mm) | 68.3 |
| Shank Diameter (mm) | 3 |
| Surface Treatment | DEX coat |
| Tip Angle (°) | 150 |
| Tip Size (mm) | 0.3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
=Specification&""&Pilot
