Multiple Sumiboron pieces are brazed to one insert.
Multi-corner one-use inserts are fully ground to a G-class precision specification. In addition, all corners are numbered, making it easy to keep track of used corners.
The combination of a tough, heat-resistant CBN base material and a special ceramic coating achieves longer tool life and improved machining accuracy than conventional CBN tools.
Coated Sumiboron cutting edge specifications have been expanded to provide high-precision machining and burr suppression.

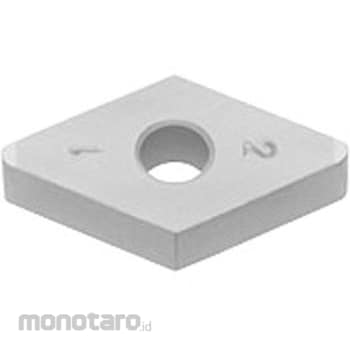

*The image is a representative image.
Sumitomo Electric Hard Metal Sumiboron throwaway tip
#Grup produk P114345332
Spesifikasi
| Blade Shape | Multi-corner type |
|---|---|
| Corner Height Tolerance (mm) | ±0.025 |
| Cutting edge treatment | Standard cutting edge |
| Grade | BNC200 |
| Hole Diameter (mm) | 5.16 |
| Inscribed Circle (mm) | 12.7 |
| Insert Thickness (mm) | 4.76[04] |
| Insert Used | Diamond [D] |
| Number of Cutting Edges | 4 |
| Product Type | Negative type/One-use type |
| Socket Shape | Cylindrical |
| Symbol | Cutting edge specification: S01225 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.025 |
| Type | NC |
| With Or Without Hole | Yes |
