High-efficiency machining of deep corners: SEC-Wave Mill A cutter with a long cutting edge with a multi-stage arrangement of inserts for the WEZ type, enabling high-efficiency machining of deep corners.
Excellent anti-chattering performance: The combination of a sharp insert and an unevenly divided body suppresses chatter vibration.

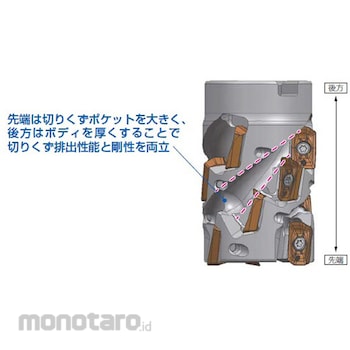

Body features: Flute shape that combines rigidity and chip evacuation. The tip has a larger chip pocket and the rear body is thicker to achieve both chip evacuation performance and rigidity.
Unequally divided body to suppress chatter: Unequally divided body improves chatter resistance.
The combination of a sharp insert and an unevenly divided body provides excellent chatter resistance.
Corner cutting, groove, side processing
*The insert is not included in the main body.
*The dimensions in parentheses for APMX, OAL, and LF are the dimensions when using RE=3.0/3.2 inserts.
Sumitomo Electric Hard Metal SEC-Wave Mill WEZR11000M type (modular type)
#Grup produk P114343918
Spesifikasi
| Cutting Angle (°) | 90 |
|---|---|
| Dimension APMX (mm) | Maximum depth of cut: 27(26) |
| Dimension DCFMS (mm) | (Boss diameter) DIA28.5 |
| Dimension DCON (mm) | Mounting diameter: DIA17 |
| Dimension L11 (mm) | (Biratori)12 |
| Length (mm) | (LS2)5 |
| Mass (kg) | 0.21 |
| Number of Tiers | 3 |
| Number of Tips | (Total number of blades) 9, (Effective) 3 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Screw Size | M16 |
| Spanner Size (mm) | (H)24 |
