For corner cutting, digging, and semi-shoulder cutting.
*The insert is not included in the main body.
*The image is a representative image.
Sumitomo Electric Hard Metal SEC-Sumi Power Mill Cutter
#Grup produk P114343334
Spesifikasi
| Abrasive Materials | Cast iron |
|---|---|
| Blade Diameter (mm) | 100 |
| Bolt Diameter d1 (mm) | 46 |
| Compatible Insert | LNMX 160608PNSN- |
| Cutting Angle (°) | 88 |
| Dimension CBDP (mm) | 32 |
| Dimension DCFMS (mm) | 70 |

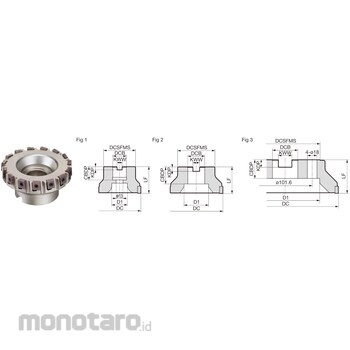

| Fig | 2 |
| Groove Depth (mm) | 8 |
| Groove Width (mm) | 12.7 |
| Height (mm) | 50 |
| Hole Diameter (mm) | 31.75 |
| Inscribed Circle (mm) | 12.7 |
| Maximum depth of cut (mm) | 15 |
| Number of Tips | 8 |
| Rake Angle (°) | -15 (radial direction) / -5 (axial direction) |
| Right or Left Hand | Right [R] |
| Symbol | Insert inscribed circle size: 4, cutter diameter: 100 |
| Type | PWC |
