The compound arc-shaped cutting edge allows for both a small cutting angle and a large cutting depth.
A small cutting angle controls cutting resistance in the thrust direction.
Even when machining with a long tool overhang, it remains stable and vibration-free.
Introducing the DMSL type for small diameters. Blade diameters from Φ16mm are now available.
High-efficiency rough machining for flat cutting, corner cutting, groove cutting, profiling, tilting, plunging, and helical cutting
*The insert is not included in the main body.
*The image is a representative image.

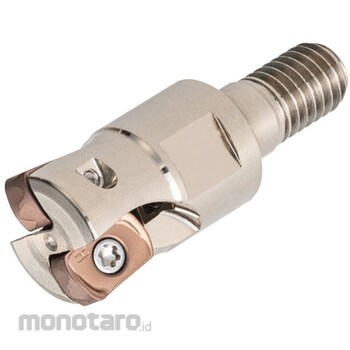

Sumitomo Electric Hard Metal SEC-Sumi Dual Mill Head
#Grup produk P114343015
Sebelum PPN:
Rp8.799.900 - Rp9.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimension DCFMS (mm) | 28.5 |
|---|---|
| Dimension DCON (mm) | 17 |
| Dimension L11 (mm) | 12 |
| Overall Length (mm) | 63 |
| Rake Angle (°) | -12.5 to -16.5 (radial direction) / -8 (axial direction) |
| Screws | M16 |
| Width H (mm) | 24 |
