The compound arc-shaped cutting edge allows for both a small cutting angle and a large cutting depth.
A small cutting angle controls cutting resistance in the direction of thrust force. Stable, no chatter even when machining with a long tool overhang.
*To fasten the main body to the arbor, use JIS B1176 "hexagon socket head cap screws" (metric specifications → M12 x 30-35 mm, inch specifications → M16 x 40-45 mm).
*When selecting a cutter, please check the holder mounting size (DCB). The main body does not come with an insert.
*The image is a representative image.

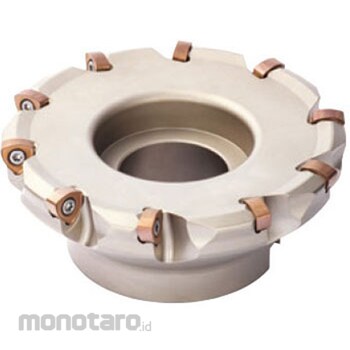

Sumitomo Electric Hard Metal SEC-Sumi Dual Mill Cutter
#Grup produk P114342715
Spesifikasi
| Abrasive Materials | P (general steel ◎ / tempered steel / die steel ◎ / carbon steel ◎ / alloy steel ◎), M (stainless steel ○), K (cast iron ◎ / ductile cast iron ◎), H (high-hardness steel 45-55HRC ○) |
|---|---|
| Blade Diameter (mm) | 83.3 |
| Bolt Diameter d1 (mm) | 46 |
| Bolt Diameter d2 (mm) | 27 |
| Cutting Angle (°) | 15 |
| Dimension DCX (mm) | 100 |
| Fig | 8 |
| Flange Diameter (mm) | 70 |
| Groove Width (mm) | 12.7 |
| Height (mm) | 63 |
| Hole Diameter (mm) | 31.75 |
| Mass (kg) | 1.76 |
| Maximum depth of cut (mm) | 3 |
| Number of Tips | 8 |
| Processing details | Grooving ○/Flat high feed ◎/Engraving ○/Tilting ○/Corner cutting ◎/Groove 1 ◎/Flat ◎/Helical ◎/Tilting ◎/Copying ◎/Plunge ◎ |
| Rake Angle (°) | -7 to -10 (radial direction) / -6 (axial direction) |
