For general turning, end faces and copying.
*The main unit does not come with a wrench for the base plate.
*The image is a representative image.

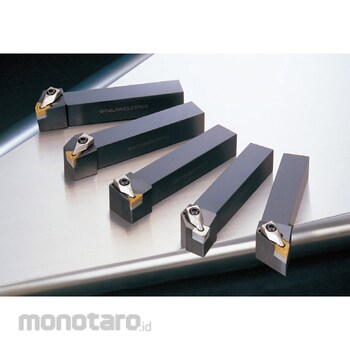

Sumitomo Electric Hard Metal SEC-External Diameter Tool Holder
#Grup produk P114341415
Spesifikasi
| Clamp | Double clamp type |
|---|---|
| Clearance Angle (°) | 0 |
| Compatible Insert | CN 2509 |
| Cutting Angle (°) | 95 |
| Cutting Blade Length (mm) | 25.8 |
| Cutting Tip Length (mm) | 40 |

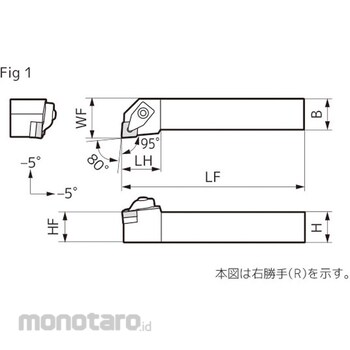

| Fig | 1 |
| Inscribed Circle (mm) | 25.4 |
| Insert Thickness (mm) | 9.52 |
| Offset | Yes |
| Shank Height (mm) | 40 |
| Shank Length (mm) | 250 |
| Shank Width (mm) | 40 |
| Shape | Insert: Diamond [C] |
| Symbol | Insert cutting edge length: 25, Insert clearance angle: N, Shank height: 40, Shank length: S, Shank width: 40, Structure: D, Cutting edge shape: L |
| Tip (mm) | 50 |
